LT-240-20
HOME / Induction heater / 1K~20KHz / LT-240-20

LT-240-20

Information

  1. Made in Taiwan
  2. Panel function with nine-stage heating mode

Specification

Model LT-240-20
Input voltage 380VAC (± 15%) three-phase
Input power 240KVA
Oscillation frequency 1K to 20KHz
Output voltage AC 1200VOLT max
Cooling water flow 20L/MIN, 2.5Kg-cm2 (35psi)
Host protection module DC overcurrent protection
AC overcurrent protection
Under-phase protection
Input overvoltage protection
Output overvoltage protection
Underwater protection
Over temperature protection
Lead-out line Start stop signal
Machine running signal
DC 0~5V power control (optional)
RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional)
Estimated weight Host:
Extension:

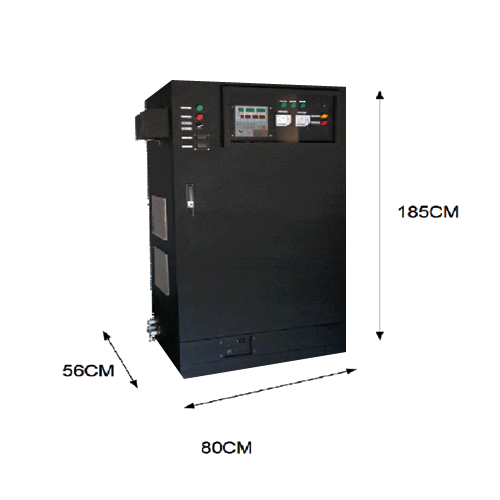

Estimated size Host: Length 56CM (depth) Wide 80CM High 185CM
Extension: Length 65CM (depth) Width 120CM Height 80CM

Optional

  • Infrared non-contact temperature probe: The temperature range is shown in the table below. There are four probes available.
  • 40~975°C, 100~600°C, 385~1600°C sampling speed is 1ms fastest
  • Digital temperature controller: 200mS sampling speed, PID temperature control, automatic logic calculation and optional RS-232 digital interface.
