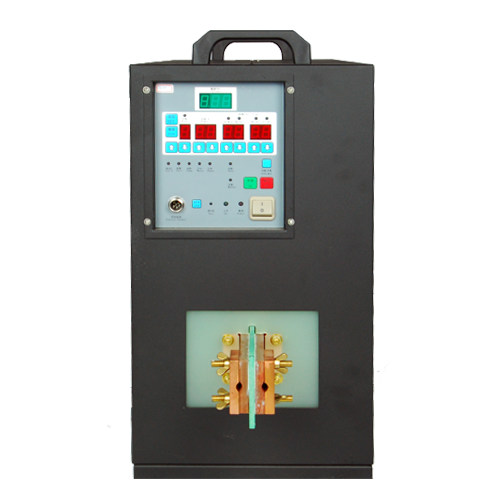

LT-25-80
Information
Features:
- Taiwan produces high-voltage and high-current capacitors with high voltage and high current.
- The special transformer design has the advantages of high pressure resistance, high temperature resistance, no breakdown, and long-lasting resistance.
- The output copper plate design makes it easier to replace the coil and there is no doubt about water leakage.
- With 24H working capacity, high dustproof capacity, enough cooling equipment can run at 100% power.
Specification
| Model | LT-25-80 |
| Input voltage | 220/380/415/440VAC (± 15%) three-phase |
| Input power | 25KVA |
| Oscillation frequency | 30K～80KHz |
| Cooling water flow | 12L/MIN, 2.5Kg-cm2 (35psi) |
| Host protection module |
DC overcurrent protection AC overcurrent protection Under-phase protection Input overvoltage protection Output overvoltage protection Underwater protection Over temperature protection |
| Lead-out line |
Start stop signal Machine running signal DC 0~5V (4-20mA) power control (optional) RS485 power control (optional) |
| Estimated weight |
Host weight: Extension weight: |
| Estimated size |
Host size: Standard capacitor size: |
Other
Application:
Forging industry, heat shrinking, stainless steel tube tempering, laboratory vacuum melting furnace, scrap metal recycling solution, rubber coated metal recycling, turning tool welding, screwdriver recovery.More Products
