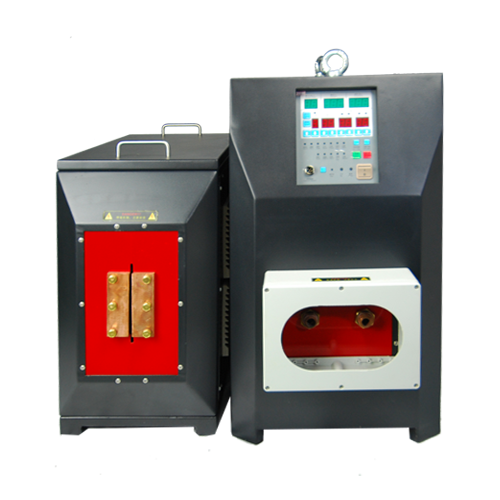

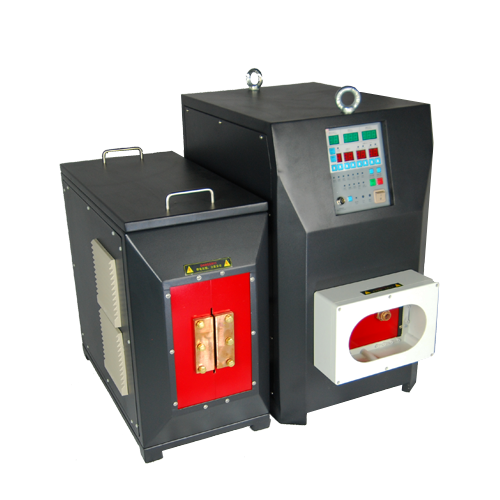

LT-30-400
HOME / Induction heater / 1K~20KHz / LT-30-400

LT-30-400

Information

Features:

  1. Flat-plate capacitors with high voltage and high current.
  2. The special transformer design has the advantages of high pressure resistance, high temperature resistance, no breakdown, and long-lasting resistance.
  3. The output copper plate design makes it easier to replace the coil and there is no doubt about water leakage.
  4. With 24H working capacity, high dustproof capacity, enough cooling equipment can run at 100% power.

Specification

Model LT-30-400
Input voltage 380VAC/415VAC/440VAC (± 15%) three-phase
Input power 30KVA
Oscillation frequency 30K~80KHz
Cooling water flow 30L/MIN, 2.5Kg-cm2 (35psi)
Host protection module DC overcurrent protection
AC overcurrent protection
Under-phase protection
Input overvoltage protection
Output overvoltage protection
Underwater protection
Over temperature protection
Lead-out line Start stop signal
Machine running signal
DC 0~5V (4-20mA) power control (optional)
RS485 power control (optional)
Estimated weight Host weight: 45KG
Extension weight: 28KG
Estimated size Host size: 75H/40W/65D
Standard capacitor size: 40H/30W/45D

Optional

Application:

Wire heating, turning tool welding, gear quenching, shallow bar quenching
