LT-60-80
Information
- Made in Taiwan
- The panel function has a nine-stage heating mode, and each heating power and time can be individually set and stored
Specification
| Model | LT-60-80 |
| Input voltage | 380VAC (± 15%) three-phase |
| Input power | 300KVA |
| Oscillation frequency | 30K～80KHz |
| Output voltage | AC 50VOLT max |
| Cooling water flow | 22L/MIN, 2.5Kg-cm2 (35psi) |
| Host protection module |
DC overcurrent protection AC overcurrent protection Under-phase protection Input overvoltage protection Output overvoltage protection Underwater protection Over temperature protection |
| Lead-out line |
Start stop signal Machine running signal DC 0~5V power control (optional) RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional) |
| Estimated weight |
Host: 67KG Heating head: 55KG |

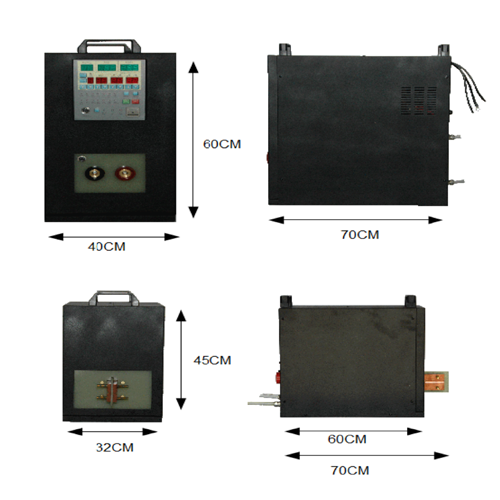

| Estimated size |
Main unit: length 70CM (depth), width 40CM high 60CM (including wheel 67CM) Extension: Length 70CN (depth), width 32CM height 45CM (including wheel 52CM): |
Optional
- Infrared non-contact temperature probe: The temperature range is shown in the table below. There are four probes available.
- 40~975°C, 100~600°C, 250~800°C, 385~1600°C sampling speed is 1ms fastest
- Digital temperature controller: 200mS sampling speed, PID temperature control, automatic logic calculation and optional RS-232 digital interface.
