LT-70-80
Information
- Made in Taiwan
- The panel function has a nine-stage heating mode, and each heating power and time can be individually set and stored
Specification
| Model | LT-70-80 |
| Input voltage | 380VAC (± 15%) three-phase |
| Input power | 70KVA |
| Oscillation frequency | 30K～80KHz |
| Output voltage | AC 50VOLT max |
| Cooling water flow | 8L/MIN, 2.5Kg-cm2 (35psi) |
| Host protection module |
DC overcurrent protection AC overcurrent protection Under-phase protection Input overvoltage protection Output overvoltage protection Underwater protection Over temperature protection |
| Lead-out line |
Start stop signal Machine running signal DC 0~5V power control (optional) RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional) |
| Estimated weight |
Host: Heating head: |

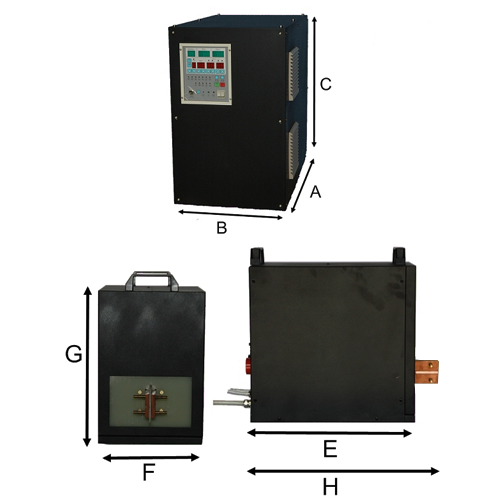

| Estimated size |
Host: Heating head: |
Optional
- Infrared non-contact temperature probe: The temperature range is shown in the table below. There are four probes available.
- Probe: 250°C - 800°C, 400°C - 1200 °C, 700°C - 1600°C, 1000°C - 2000°C
- Digital temperature controller: 200mS sampling speed, PID temperature control, automatic logic calculation and optional RS-232 digital interface.
