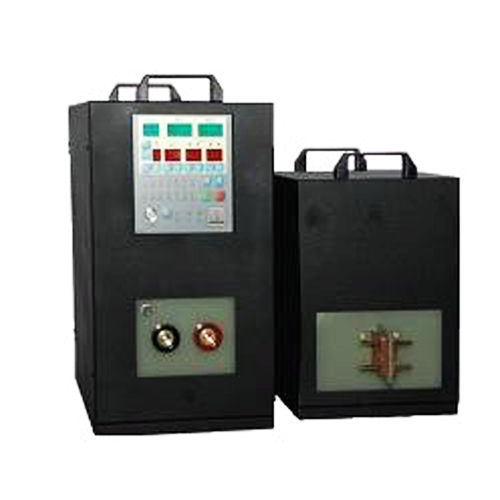

LT-35-80
Information
- Can do small workpiece forging, quenching, welding, etc. work
- Made in Taiwan
- The panel function has a nine-stage heating mode, and each heating power and time can be individually set and stored
Specification
| Model | LT-35-80 |
| Input voltage |
220VAC (± 15%) three-phase 380VAC (± 15%) three-phase |
| Input power | 35KVA |
| Oscillation frequency | 30K～80KHz |
| Output voltage | AC 50VOLT max |
| Cooling water flow | 20L/MIN, 2.5Kg-cm2 (35psi) |
| Host protection module |
DC overcurrent protection AC overcurrent protection Under-phase protection Input overvoltage protection Output overvoltage protection Underwater protection Over temperature protection |
| Lead-out line |
Start stop signal (3 WIRE) Machine running signal (3 WIRE, NO & NC FOR PLC) DC 0~5V power control (optional) RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional) Temperature control (optional) |
| Estimated weight |
Host: 39KG Heating head: 33KG |
| Estimated size |
Host: Length 56CM (depth), width 28CM, height 51CM Heating head: length 49CM (depth), width 27CM, height 39CM |
Optional
- Infrared non-contact temperature probe: The temperature range is shown in the table below. There are four probes available.
- Probe: -40~975° C, 100~600° C, 250~800° C, 385~1600° C
- Digital temperature controller: 200mS sampling speed, PID temperature control, automatic logic calculation and optional RS-232 digital interface
