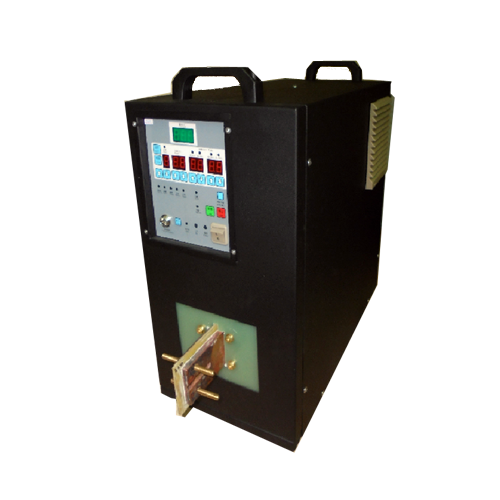

LT-25-80
HOME / Induction heater / 20K~100K / LT-25-80

LT-25-80

Information

  1. Can do small workpiece forging, quenching, welding, etc. work
  2. Made in Taiwan
  3. The panel function has a nine-stage heating mode, and each heating power and time can be individually set and stored

Specification

Model LT-25-80
Input voltage 220VAC (± 20%) single phase
380VAC (± 20%) three-phase
Input power 25KVA
Oscillation frequency 30K~80KHz
Output voltage AC 50VOLT max
Cooling water flow 18L/MIN, 2.5Kg-cm2 (35psi)
Host protection module DC overcurrent protection
AC overcurrent protection
Under-phase protection
Input overvoltage protection
Output overvoltage protection
Underwater protection
Over temperature protection
Lead-out line Start stop signal (3 WIRE)
Machine running signal (3 WIRE, NO & NC FOR PLC)
DC 0~5V power control (optional)
RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional)
Temperature control (optional)
Estimated weight Host: 28KG
Estimated size Host: Length 57CM (depth), width 27CM, height 46CM

Optional

  • Infrared non-contact temperature probe: The temperature range is shown in the table below. There are four probes available.
  • Probe: -40~975° C, 100~600° C, 250~800° C, 385~1600° C
  • Digital temperature controller: 200mS sampling speed, PID temperature control, automatic logic calculation and optional RS-232 digital interface.
