LT-160-80

Information

  1. Made in Taiwan
  2. The panel function has a nine-stage heating mode, and each heating power and time can be individually set and stored

Specification

Model LT-160-80
Input voltage 380VAC (± 15%) three-phase
Input power 160KVA
Oscillation frequency 30K~80KHz
Output voltage AC 50VOLT max
Cooling water flow 15L/MIN, 2.5Kg-cm2 (35psi)
Host protection module DC overcurrent protection
AC overcurrent protection
Under-phase protection
Input overvoltage protection
Output overvoltage protection
Underwater protection
Over temperature protection
Lead-out line Start stop signal
Machine running signal
DC 0~5V power control (optional)
RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional)
Estimated weight Host:
Heating head:

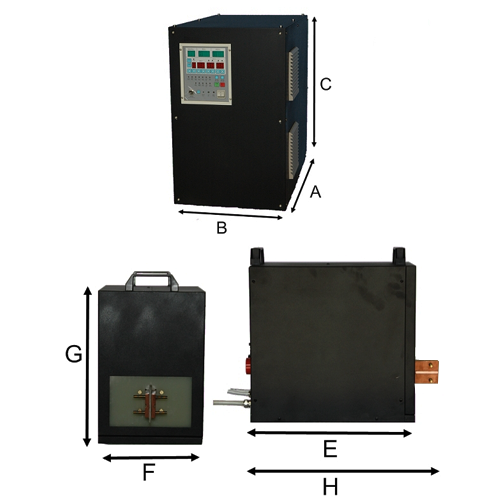

Estimated size Host:
Heating head:

Optional

  • Infrared non-contact temperature probe: The temperature range is shown in the table below. There are four probes available.
  • Probe: 250°C - 800°C, 400°C - 1200°C, 700°C - 1600°C, 1000°C - 2000°C
  • Digital temperature controller: 200mS sampling speed, PID temperature control, automatic logic calculation and optional RS-232 digital interface.
