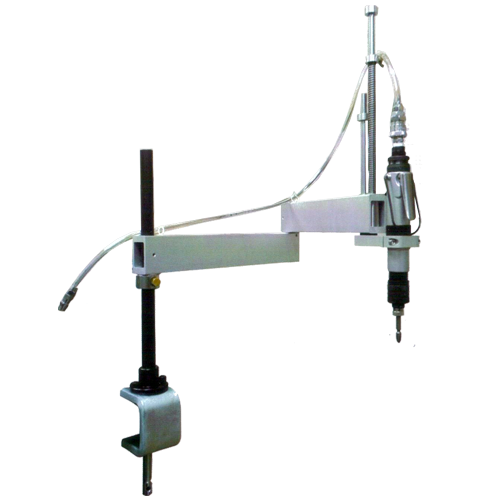

Frictionless Arm and Tapping Machine
HOME / 攻牙機 / 無阻力臂攻牙機 / Frictionless Arm and Tapping Machine

Frictionless Arm and Tapping Machine

  • 分類: 攻牙機
  • 型號: FA MODELS
  • M0.5-M10(Micro thread) Working Radius:150-650mm,150-450mm

商品介紹

Advantages:

  1. Absorb torque , prevent hand from hurting
  2. Keep tool vertical to workpiece.
  3. C clamp for fitting everywhere conveniently.
  4. Depth control-can be process controled , save tapping time and protect tap and tap holders.
  5. Suitable for fitting screw drivers , and tools for tapping , Drilling , Insert coil and self tapping bush.

規格說明

Tap Capacity Speed Power Arm Working Radius Arm Model Torque control
M1-M2.7 1000RPM Air 150-450mm 906A Safety clutch
M2-M5 1000RPM Air 150-650mm 906 Safety clutch
M0.5-M1.5 200-1000RPM 50W 150-450mm 906A Electronic
M1-M2 200-1000RPM 100W 150-450mm 906A Electronic
M2-M5 200-500RPM 90W 150-650mm 906 Electronic
M2-M6 373-1120RPM 400W 150-650mm 906 Torque limited holders
M2-M8 259-777RPM 400W 150-650mm 906 Torque limited holders
M2-M10 191-575RPM 400W 150-650mm 906 Torque limited holders
