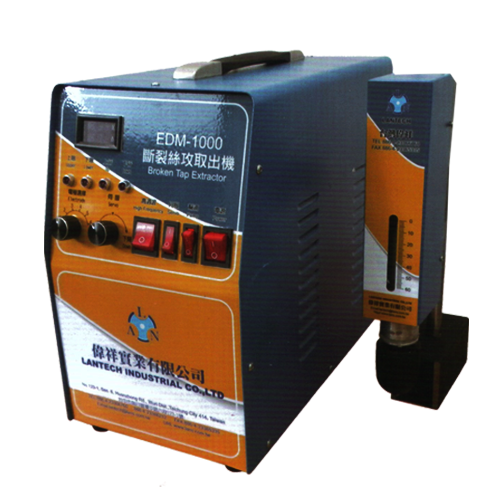

EDM-600、EDM-1000
HOME / 攻牙機 / 斷裂絲攻去除機 / EDM-600、EDM-1000

EDM-600、EDM-1000

  • 分類: 攻牙機
  • 型號: EDM-600、EDM-1000

商品介紹

Features:

Use the discharge principle to quickly remove the broken wire attack without harming the original thread.

use:

  1. Remove broken bits, screws, reamer, plug gauges and other tools.
  2. Make a small hole in the workpiece so that the electrode line of the wire cutter can pass through

規格說明

Model EDM-600 EDM-1000
Power 600W 1000W
Power supply AC220V.Single phase.50/60HZ AC 220V single phase
Electrode Brass 1.5∅ 2∅ 3∅ 4∅ 5∅ 6∅
brass 7x2.8x2.10x2
Hand operation stroke 310mm
Automatic 60mm
Speed >=1.0mm/Min >=1.5mm/Min
Liquid Water (pure water is better)
Size 380*200*320mm
Weight 15kgs 16kgs
