LTG-60-150
HOME / Induction heater / 100K~600KHz / LTG-60-150

LTG-60-150

Information

Made in Taiwan
Panel function with four-stage heating mode

Digital temperature controller:

  1. With 200mS sampling speed
  2. PID temperature control
  3. Support automatic calculation function and optional digital interface such as RS-232

Specification

Model LT-60-150
Input voltage 380VAC (± 15%) three-phase
Input power 60KVA
Oscillation frequency 30K~150KHz
Output voltage AC 100VOLT max
Cooling water flow 12L/MIN, 2.5Kg-cm2 (35psi)
Host protection module DC overcurrent protection
AC overcurrent protection
Under-phase protection
Input overvoltage protection
Output overvoltage protection
Underwater protection
Over temperature protection
Lead-out line Start stop signal
Machine running signal
DC 0~5V power control (optional)
RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional)
Estimated weight Host: 70KG
Extension: 40KG

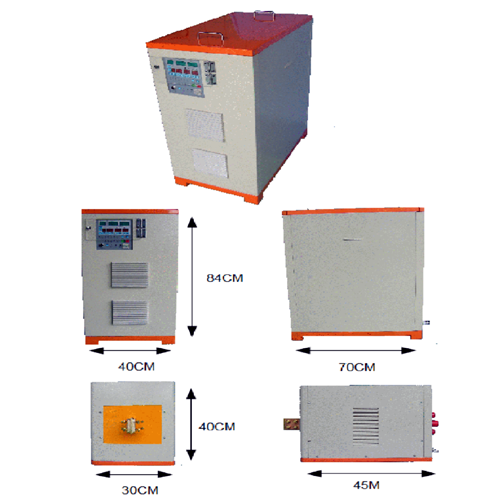

Estimated size Host: 70CM (depth), 40CM wide, 84CM high
Extension: 45CM (depth), 30CM wide, 40CM high

Optional

  • Infrared non-contact temperature probe
  • Infrared non-contact temperature probe, the temperature range is as follows, there are four kinds of probes available: 250 °C -800 °C, 400 °C -1200 °C, 700 °C -1600 °C, 1000 °C -2000 °C
