LT-5-30

Name: 偉祥實業有限公司
Address: 台中市南屯區精科南路99號六樓之五

Information

Made in Taiwan
Panel function with four-stage heating mode

With 200mS sampling speed
PID temperature control
Support automatic calculation function and optional digital interface such as RS-232

Model	LT-5-30
Input voltage	220VAC (± 15%) single phase
Input power	5KVA
Oscillation frequency	15K～60KHz
Output voltage	AC 600VOLT max
Cooling water flow	3L/MIN, 2.5Kg-cm2 (35psi)
Host protection module	DC overcurrent protection AC overcurrent protection Under-phase protection Input overvoltage protection Output overvoltage protection Underwater protection Over temperature protection
Lead-out line	Start stop signal Machine running signal DC 0~5V power control (optional) RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional)
Estimated weight	Host: 20KG Heating head: 6KG

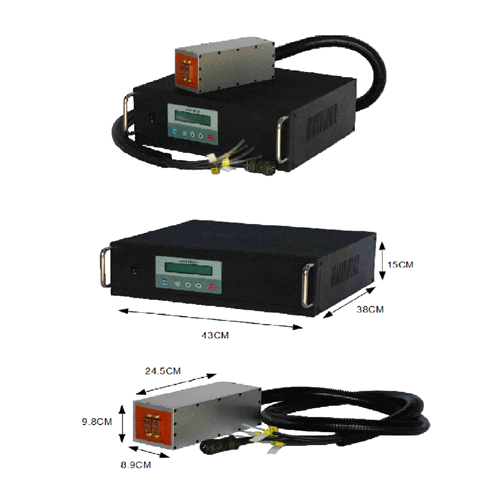

Estimated size	Host: 38CM (depth), 43CM wide, 15CM high Heating head: 24.5CM long, 8.9 CM wide, 9.8CM high

Infrared non-contact temperature probe
Infrared non-contact temperature probe, the temperature range is as follows, there are four kinds of probes available: 250 °C -800 °C, 400 °C -1200 °C, 700 °C -1600 °C, 1000 °C -2000 °C
