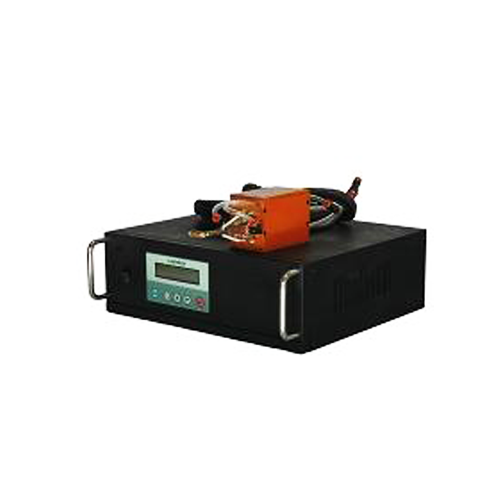

LT-5-1000

Information

Made in Taiwan
The panel function has a four-stage heating mode, and each stage of heating power and time can be individually set and stored.

Model	LT-5-1000
Input voltage	220VAC (± 15%) single phase
Input power	5KVA
Oscillation frequency	600K～1000KHz
Output voltage	AC 600 VOLT max
Cooling water flow	10L/MIN, 2.5Kg-cm² (35psi)
Host protection module	DC overcurrent protection AC overcurrent protection Under-phase protection Input overvoltage protection Output overvoltage protection Underwater protection Over temperature protection
Lead-out line	Start/stop signal (3 WIRE) Machine operation signal (3 WIRE, NO & NC FOR PLC) DC 0~5V control power (optional) RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional) Temperature control (optional)
Estimated weight	Host: 20KG Heating head: 3KG
Estimated size	Host: 38CM (depth), 43CM wide, 15CM high Heating head: length 13.5CM (depth), width 9CM, height 7CM

Digital temperature controller: with 25mS sampling speed, PID temperature control, automatic logic calculation and optional RS-232 digital interface.
Infrared non-contact temperature probe: The temperature range is shown in the table below. There are four probes available.
Probe: 40~975° C, 100~600° C, 250~800° C, 385~1
