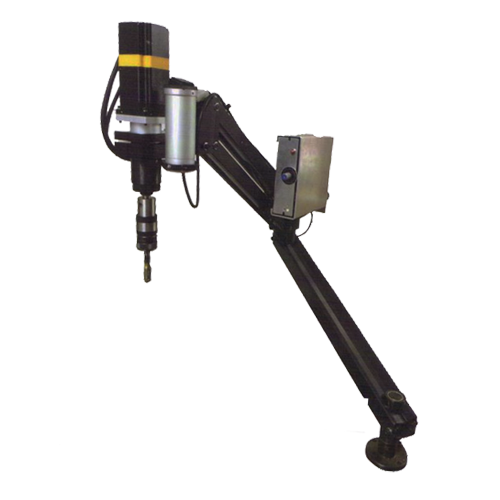

EM Model
Information
Features:
- Consumption: electric tapping machine ⇒ 1/5 pneumatic tapping machine & rArr; 4/5 electric tapping machine consumption is less than pneumatic tapping machine
- Air compressor maintenance rate is low
- Low noise
- Depth control device
- Time saving and tapping
- Vertical/horizontal tapping equipment
- High steelity
- Cheap price
- Stepless speed change: speed can be adjusted without segment modulation 1/3 speed, no torque reduction
Specification
| Tapping size | Speed | Power | Tapping arm (working radius) | Model |
| M1-M1.6 | 1000 | 50W |
150-650 150-450 150-980 |
906 906A 906B |
| M1.4-M2 | 1000 | 100W | ||
| M1.6-M2.6 | 1000 | 100W | ||
| M2-M3 | 930 | 90W | ||
| M2-M4 | 650 | 90W | ||
| M2-M5 | 480 | 90W | ||
| M3-M6 | 1120 | 400W |
90-980 50-1430 750-1600 300-2050 750-1300 300-1750 |
901 901S 902 902S 902A 902AS |
| M3-M8 | 777 | |||
| M3-M10 | 576 | |||
| M3-M12 | 300 | |||
| M10-M12/M3-M12 | 183/576 | |||
| M12 | 700 | 800W | ||
| M16 | 425 | |||
| M12-M16/M3-M12 | 222/700 | |||
| M16-M22/M4M12 | 135/425 | |||
| M18-M24/M4-M16 | 106/334 | 800W |
200-1150 50-1600 800-1600 300-2100 800-1900 300-2400 |
904 904S 903 903S 903A 903AS |
| M18-M27/M4-M16 | 85/267 | |||
| M24-M30/M4-M20 | 67/210 | 800W | ||
| M24-M36/M4-M2 | 85/267 | |||
| M27-M42/M4-M24 | 67/210 | 1500W |
250-1200 900-1700 400-2200 |
908 905 905S |
