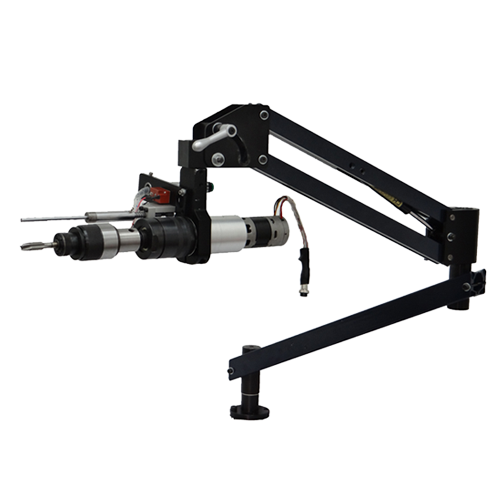

EM11-901
Information
Features:
- Saves more than 85% of electricity - as long as 15% of the power compared to pneumatic tapping machines.
- No air pollution.
- 36 volts low voltage, no risk of electric shock.
- There are five gearboxes available for exchange to provide a suitable and efficient tapping speed. (patent)
- Depth control for precise thread depth.
- The latest vertical/horizontal tapping device is simpler and stronger. (patent)
Specification
| Gearbox | Tapping arm | Other | ||||
| Model | Tapping ability | RPM | Model | Working radius(mm) | Type | |
| EM1 |
M3 M6 M8 M12 M16 |
3300-4400 900-1200 600-800 230-300 160-200 |
A1 A2 A3 A4 A5 |
90-980 50-1430 750-1600 300-2050 750-1300 300-1750 |
901 901S 902 902S 902A 902AS |
Gear box Interchangeable |
| EM11 |
M8 / M16 M8 / 5/8'' M10 / 5/8'' M10 / M20 |
490-630 / 155-200 490-630 / 120-150 340-440 / 110-140 340-440 / 85-110 |
C1 C2 C3 C4 |
100-700 | 905 |
Two-stage speed Gear box Not interchangeable |
| EM2 |
M12 / M20 M8 / M16 M20 M24 |
220-280 / 70-90 490-630 / 155-200 75-95 50-65 |
B2 B4 B5 B6 |
200-1150 50-1600 800-1600 300-2100 |
904 904S 903 903S |
Gear box Interchangeable |
| EM3 | M36 | 83/58 |
200-1150 400-2100 |
906 907S |
||
| EM4 | M45 | 38/27 |
200-1150 400-2100 |
906 907S |
||
Optional
- 3/8 Inches or 1/2 Inches drill cap connector.
- Permanent magnet mounting base (100 kg, 200 kg, 300 kg, 500 kg suction)
- Movable holde
