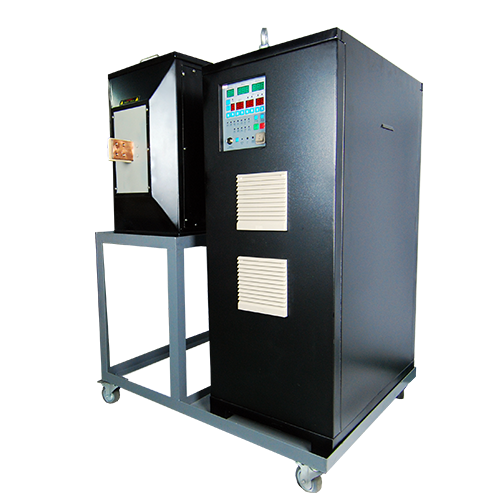

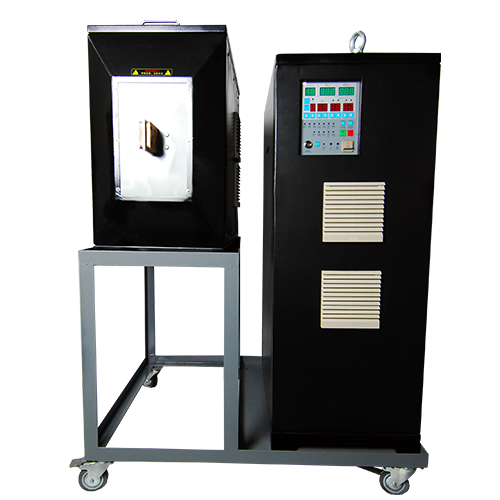

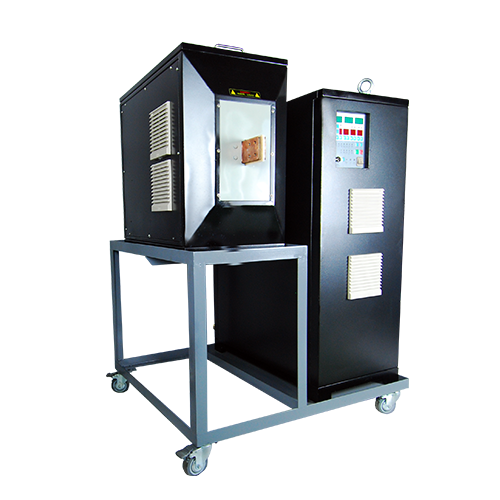

LT-100-50
HOME / Induction heater / 20K~100K / LT-100-50

LT-100-50

  • Category: Induction heater
  • Type: LT-100-50
  • Low voltage shock capacitor, high current, high efficiency, low water cooling.
    The transformer has an insulation rating of more than 3000AC, good quality, and no breakdown.
    The range of the coil is wide, and it can work in both length and length.

Information

  1. Low voltage shock capacitor, high current, high efficiency, low water cooling.
  2. The transformer has an insulation rating of more than 3000AC, good quality, and no breakdown.
  3. The range of the coil is wide, and it can work in both length and length.

Specification

Model LT-100-50
Input voltage 380VAC(±15%) 3 Phase
380VAC(±15%) 3 Phase
Input power 100KVA
Oscillation frequency 25K ~ 70KHz
Output voltage 1200VOLT MAX
Cooling water flow 50L/MIN, 2.5Kg-cm²(35psi)
Host protection module
DC overcurrent protection
AC overcurrent protection
Phase loss protection
Input overvoltage protection
Output overvoltage protection
Underwater protection
Over temperature protection
Lead-out line
Start and stop signal
Machine running signal
DC 0~5V (4-20mA) power control (optional), RS485 power
Control (optional)
Estimated weight
Host weight: 100KG
Extension weight: 40KG
Estimated size
Host size: 110H/70W/45D
Standard capacitor size: 55H/30W/60D

Optional

DC 0~5V (4-20mA) power control


Other

With the heating effect of large coil and small workpiece, it can still reach the temperature of forging or gasification and evaporation.
Thin plate forging above 3MM, evaporation coating production line, heat shrinking, stainless steel cylinder tempering, laboratory vacuum melting furnace
The host extension line can reach 6 meters to 10 meters (need to be customized)
