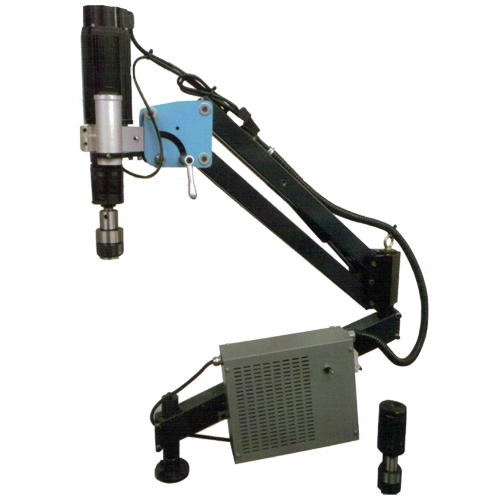

EM1-S、 EM2-S、 EM3、EM4
Information
Features:
- Gearboxes with the same letter in English are interchangeable
- Depth control
- Vertical/horizontal
- Labor saving
- Precision extended wire tapping
- Long tapping jacket has a long service life
Specification
| Model | Power | Max. Tapping | RPM | Gearbox | Tapping arm (Working radius) | Tapping arm model |
| EM1-S | 600W |
M8 M16 M8/M16 M10/M18 |
555 148 500/159 304/96 |
A1 A2 E1 F1 |
90-980 50-1430 750-1600 300-2050 750-1300 300-1750 100-650 |
90901 901S 902 902S 902A 902AS 906專利品 |
| EM2-S | 600W |
M10/M18 M12/M22 M8/M16 M24 |
304/96 238/76 500/159 50 |
F1 F2 E1 E2 |
200-1150 800-1600 300-2100 800-1900 |
904 903 903S 903A |
| EM3 | 1200W |
M12/M22 M27 M16/M22 M27 M30 |
500/159 100 304/96 96 76 |
E1 E3 G1 G2 G3 |
300-2400 | 903A |
| EM4 | 1800W |
M16 M27 M33 M36 M42 |
375 125 94 75 41 |
H1 H2 H3 H4 H5 |
250-1200 900-1700 400-2200 900-2000 400-2500 |
908 905 905S 905A 905AS |
